DATA LOGGER

.

TempChrome Data Loggers

Track & Collect Valuable Data

  • TempChrome T32SU
  • Single-Use
  • Multi Use Temperature Data Logger

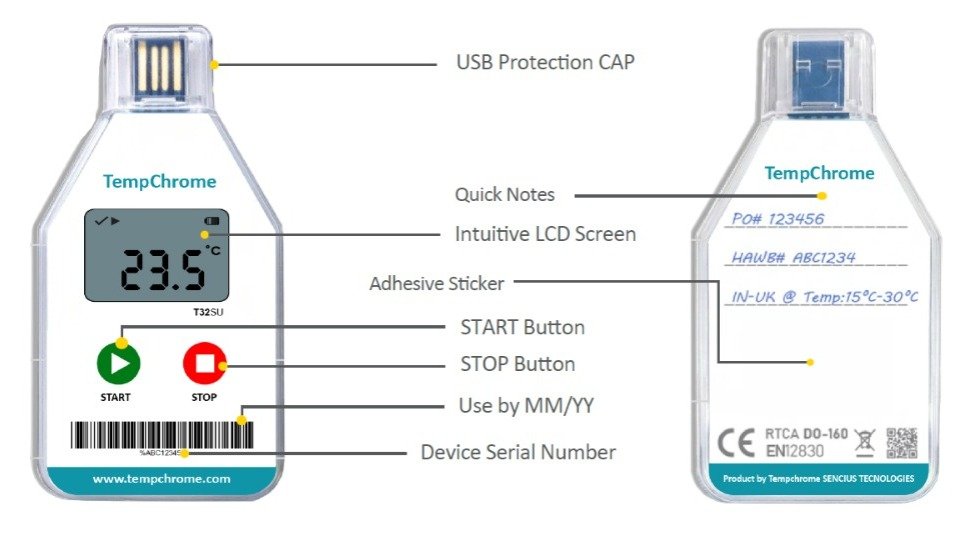

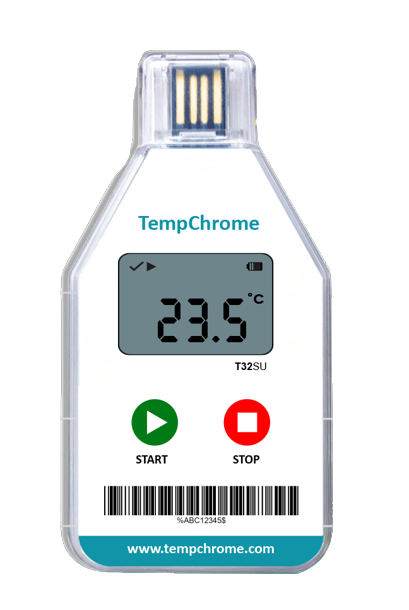

Single-Use Temperature Data Logger

TempChrome Data Loggers – Economical Single-use Temperature Data Logger for Cold Chain Monitoring.


TempChrome dataloggers are extremely engineered for cold chain monitoring
during s transit. TempChrome dataloggers are integrated with USB & Plug-N-Play features for auto-generating secured PDF report without requiring additonal Hardware (cable/interface) or software.

TempChrome dataloggers are equipped with highly precise sensor with accuracy of 0.5°C for entire range of -30°C to +70°C. Manufacturerts NIST traceable
Certificate of Validation is included to comply with Quality Assurance needs.

.

TempChrome Data Logger

Record temperature and humidity , 10,000 data points pdf report output. The device can be customized for diffrent requirements, can be adjust the recording and start end timing as per the client requirement

Specification

Dimension
N.W
Recording Option
Temperature Range
Temperature Accuracy
Temperature Resolution
Data Storage Capacity
Shelf Life / Battery
Recording Interval
Recording Duration
Temperature Alarm Range
Alarm Type
Start Delay
Report Generation
Waterproof Level

69mm*33mm*5mm
10g
Single use
-30°C~+60°C
0.5°C(-20°C~+40°C);?1.0°C(other range)
0.1?C
10000
2 years/CR2032 button cell
10 minutes (standard, others on request)
60 days (standard, others on request) >8°C or <2°C
The red LED will flash every 10s, if the temperature has been out of range
30mins
Automatic PDF report generation
IP67 (with Seal-Bag)

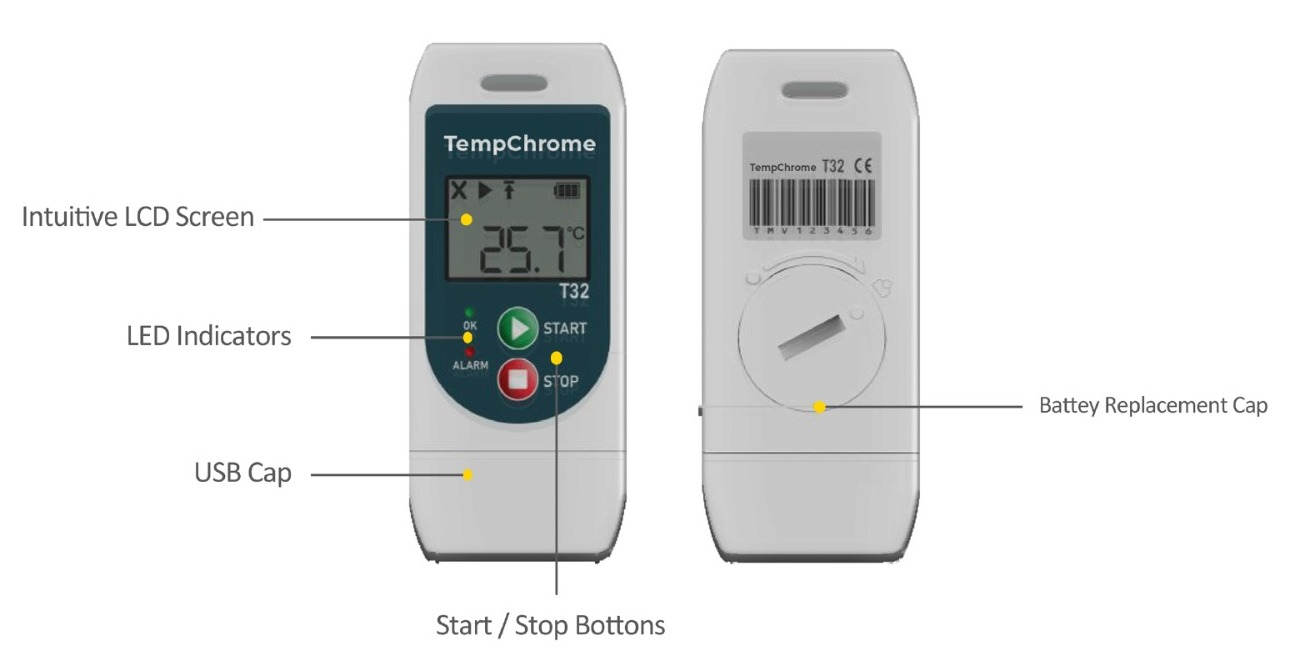

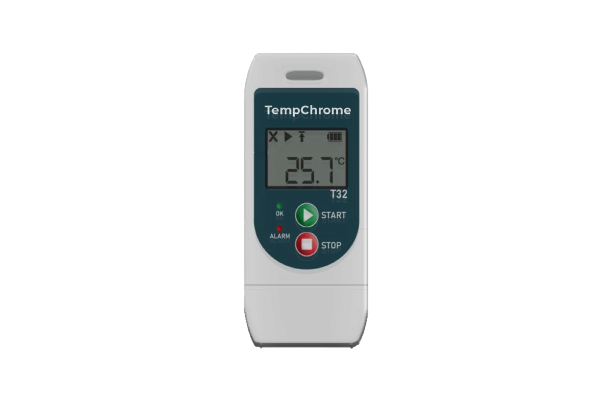

Multi Use Temperature Data Logger

Record temperature and humidity , 10,000 data points pdf report output. The device can be customized for different requirements, can be adjust the recording and start end timing as per the client requirement

TempChrome T32 dataloggers are extremely engineered for cold chain monitoring during storage or transit. TempChrome T32 is integrated with USB & Plug-N-Play features for auto generating secured PDF report without requiring additional Hardware (cable/interface) or software. TempChrome T32 dataloggers are equipped with
highly precise sensor with accuracy of 0.5°C for entire range of -25°C to +60°C. Manufacturer’s NIST traceable Certificate of Validation is included to comply with Quality Assurance needs.

PDF & CSV REPORT

Automatically generated encrypted PDF & CSV format report, no software required to access data file

EN 12830 COMPLIANT

Compliant with European standards to meet the demands of the transportation industries

USB CONNECTION

Integrated USB for most conviniently download data report without additional interface or cable.

VALIDATION CERTIFICATE

Manufacturer?s Validation Certificate included for proven accuracy and to comply with regulations

INTUITIVE LCD INDICATION

LCD shows vital inforamtion including statistics, alarm and running status, remaining battery

IP65 RATING

IP65 Highest Protective design ensures continuous data logging even in complex environmental condition

.
